翻墙:搬瓦工+shadowsocks

# 翻墙:搬瓦工+shadowsocks

为了查询资料的便利性,大部分时候需要使用Google 浏览器,但是国内除了高校能默认支持访问Google 的服务外,基本所有人想使用Google的服务都需要借助 虚拟专用网VPN(Virtual Private Network)

为能正常使用Google 的资源以及考虑到数据访问的私密性,就开始考虑搭建一个私人的VPN服务。查询了一些资料,找到了 搬瓦工 (BandwagonHost) 。以下是搭建的流程:

# 一、购买主机服务VPS

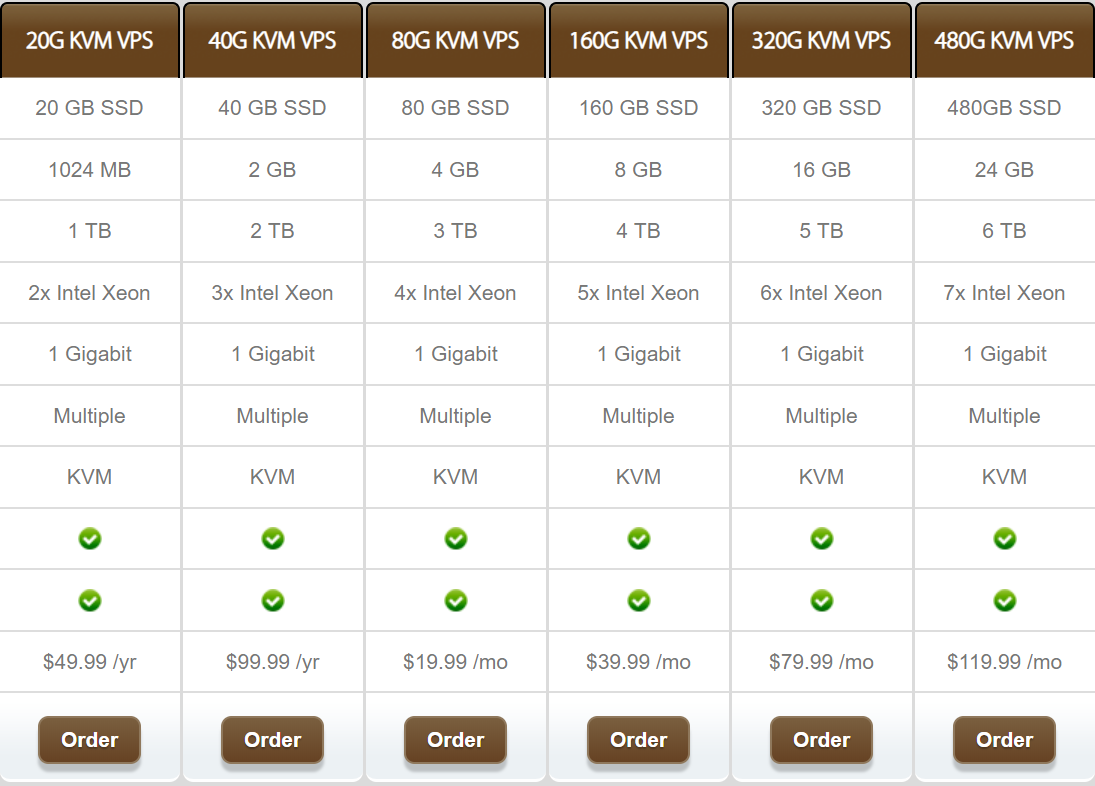

首先需要到搬瓦工上购买主机服务

image from dependency

选一个适合自己的

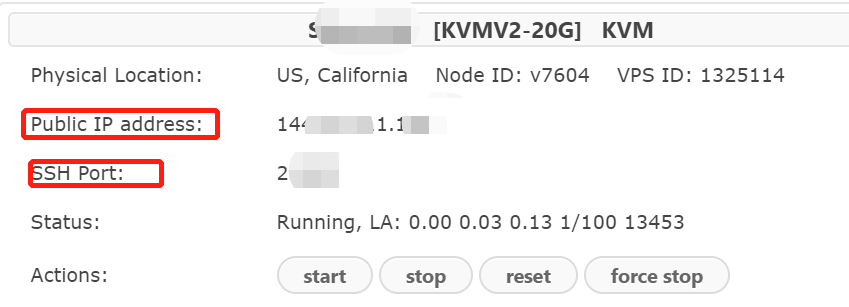

购买成功之后就可以看到:

image from dependency

# 二、登录VPS

打开git bash终端,在终端输入命令ssh root@IP地址 -p ssh端口,其中IP地址和SSH 端口换成上图中的Public IP addressSSH Port信息

ssh root@111.11.111.111 -p 1111

# 三、安装SSR脚本

VPS登录成功后,执行下面的脚本

# 1. 等到出现root@host ~字样,执行命令
wget --no-check-certificate -O shadowsocks-all.sh https://raw.githubusercontent.com/teddysun/shadowsocks_install/master/shadowsocks-all.sh

注意 (warning) : 国外服务器运行脚本时容易出错,如出现错误提示 bash: wget: command not found,可以请在先执行 yum -y install wget 命令。成功后,再执行上面的命令。如果没有出现提示错误,请略过。

# 2. 等待上一步的命令执行结束后,继续执行命令
chmod +x shadowsocks-all.sh
# 3. 等待上一步的命令执行结束后,继续执行命令
./shadowsocks-all.sh 2>&1 | tee shadowsocks-all.log
# 4. 根据需要选择,不懂的话直接选1,或者默认回车。下面会提示你输入你的 SS SERVER 的密码和端口。不输入就是默认。跑完命令后会出来你的 SS 客户端的信息。
Which Shadowsocks server you’d select:
1) Shadowsocks-Python
2) ShadowsocksR
3) Shadowsocks-Go
4) Shadowsocks-libev
Please enter a number (Default Shadowsocks-Python):1

You choose = Shadowsocks-Python

Please enter password for Shadowsocks-Python
(Default password: teddysun.com):123456

password = 123456

Please enter a port for Shadowsocks-Python [1-65535]
(Default port: 11260):11260

port = 11260
# 5. 特别注意,由于iPhone端的的wingy 目前只支持到cfb,所以我们选择 aes-256-cfb,即7,回车。
# 6. 当我们看到Congratulations, Shadowsocks-Python server install completed!时,则证明我们已经成功安装了 SS。请立即将这些信息复制下来加以保存,我们就会用到这几个比较重要的信息:主机服务器IP地址、端口号、密码和加密方式。上面的命令全部回车执行后,如果没有报错,即为执行成功,出现确认提示的时候,输入y后,回车即可。

这样的话我们就在搬瓦工VPS主机上完成了SS 的手动安装,记录保存好你的上述信息:Server IPServer PortPasswordEncryption Method,我们就可以在不同的设备终端找到相应的SS 进行安装设置使用了。

INFO: loading config from /etc/shadowsocks-python/config.json
2019-03-28 05:14:24 INFO     loading libcrypto from libcrypto.so.10
Starting Shadowsocks success

Congratulations, Shadowsocks-Python server install completed!
Your Server IP        :  111.11.111.111
Your Server Port      :  11260
Your Password         :  123456
Your Encryption Method:  aes-256-cfb

Your QR Code: (For Shadowsocks Windows, OSX, Android and iOS clients)
ss://xxxxxxxxxxxxxxxxx
Your QR Code has been saved as a PNG file path:
/root/shadowsocks_python_qr.png

Welcome to visit: https://teddysun.com/486.html
Enjoy it!

# 四、使用Shadowsocks终端体验VPN服务

GitHub上可以下载WindowsMaciPhone等版本的shadowsocks

根据设备类型,下载对应的平台软件,并设置好参数就可以畅享VPN服务了。

比如配置Windows版本:

WindowsGithub链接地址 (opens new window)

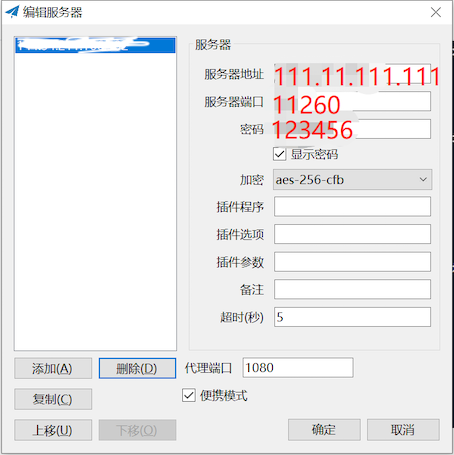

压缩包下载解压后,双击运行shadowsocks.exe,之后会在任务栏有一个小飞机图标,右击小飞机图标,选择服务器->编辑服务器:

image from dependency

shadowsockswindows客户端中,服务器IP指你购买的VPSIP,服务器端口指你服务器的配置文件中的端口,密码指你服务器的配置文件中的密码,加密指你服务器的配置文件中的加密方式,代理端口默认为1080不需要改动。其他都可以默认。设置好后,点击添加按钮即可。
